QL Cabinets Network Cabinet 19” Data Center Cabinet

Short Description:

♦ Front door: Hexagonal reticular high density vented plate door.

♦ Rear door: Double-section Hexagonal reticular high density vented plate door.

♦ Static loading capacity: 2400 (KG).

♦ Degree of Protection: IP20.

♦ Package Type: Disassembly.

♦ Salt spray test: 480 hours.

♦ Ventilation Rate: >75%.

♦ Mechanical structure door panel.

♦ Powder coated mounting profiles with U-mark.


Product Detail

Product Tags

Product Features

Mechanical structure door panel

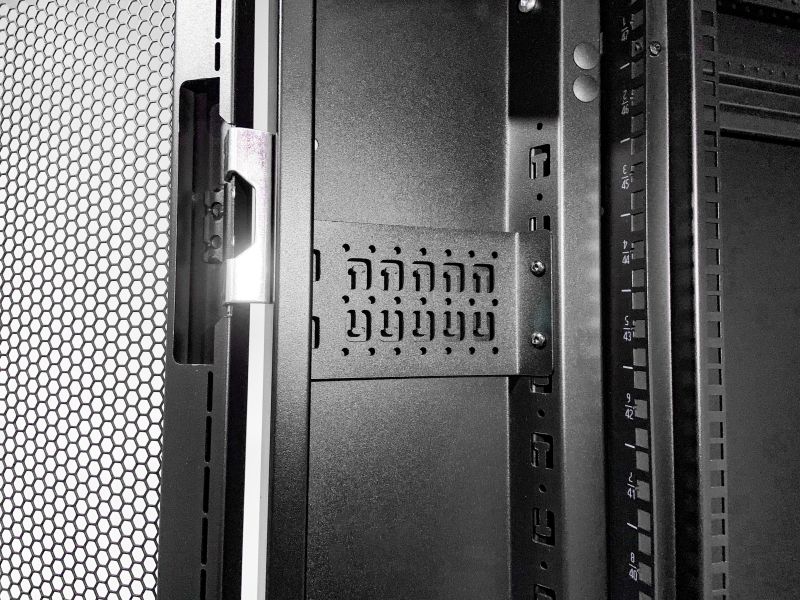

Multifunctional fixing piece
Powder coated mounting profiles with U-mark
Seamless welded frame
Flexible routing channel
Side panel with stiffener

Details

Materials

SPCC cold rolled steel

Frame

Disassembly/Welded frame

Width (mm)

600/800

Depth (mm)

1000.1100.1200

Capacity (U)

42U.47U

Front/Rear door

Mechanical structure door

Side panels

Removable side panels

Thickness (mm)

Mounting profile 2.0,Frame 1.5mm, Side panels 1.0mm, Others 1.2mm

Surface finish

Degreasing, Silanization,Electrostatic spray

Color

Black RAL9005SN(01) / Gray RAL7035SN(00)

Product  Specification

Model No.

Description

QL3.■■■■.9600

Hexagonal reticular high density vented plate front door, double-section hexagonal reticular high density vented plate rear door, gray

QL3.■■■■.9601

Hexagonal reticular high density vented plate front door, double-section hexagonal reticular high density vented plate rear door, black

QL3.■■■■.9800

Hexagonal reticular high density vented plate front door, hexagonal reticular high density vented plate rear door gray

QL3.■■■■.9801

Hexagonal reticular high density vented plate front door, hexagonal reticular high density vented plate rear door, black

Remarks: ■■■■ First ■ denotes width,second ■ denotes depth,third & fourth ■ denotes capacity.

Standard Configuration

Standard Configuration

S/N

Name

Quantity

Unit

Material

Surface Finish

Remark

1

Frame

1

set

1.5mm SPCC cold rolled steel

Electrostatic spray

---

2

Top Cover

1

piece

1.2mm SPCC cold rolled steel

Electrostatic spray

---

3

Bottom Panel

1

piece

1.2mm SPCC cold rolled steel

Electrostatic spray

---

4

Front door

1

piece

1.2mm SPCC cold rolled steel

Electrostatic spray

---

5

Rear door

1

piece

1.2mm SPCC cold rolled steel

Electrostatic spray

---

6

Side panel

2

piece

1.0mm SPCC cold rolled steel

Electrostatic spray

---

7

Mounting profile

4

piece

2.0mm SPCC cold rolled steel

Electrostatic spray

---

8

Mounting plate

8

piece

1.5mm SPCC cold rolled steel

Electrostatic spray

6pcs for lower 47U

9

Spacer block

12

piece

2.0mm SPCC cold rolled steel

Electrostatic spray

Spacer block and sealing baffle only for width 800 cabinets

10

Sealing baffle

1

set

1.2mm SPCC cold rolled steel

Electrostatic spray

11

2” Heavy duty casters

4

piece

---

---

---

12

T-Type Allen Wrench

1

piece

---

---

---

13

M6 square screw & nut

40

set

---

---

---

14

Screws and nuts for combining cabinets

6

set

---

---

---

15

Screws and nuts for connecting base

4

set

---

---

---

Payment & Warranty

Payment

For FCL (Full Container Load), 30% deposit before production, 70% balance payment before shippment.
For LCL (Less than Container Load), 100% payment before production.

Warranty

1 year limited warranty.

Shipping

shipping

• For FCL (Full Container Load), FOB Ningbo, China.

• For LCL (Less than Container Load), EXW.
