MS2 Cabinets Network Cabinet 19” Data Center Cabinet

Short Description:

♦ Front door: 5mm Toughened glass door.

♦ Rear door: Plate steel door/ Vented plate door.

♦ Static loading capacity: 1000 (KG).

♦ Degree of Protection: IP20.

♦ Package Type: Disassembly.

♦ Optional Fan unit easy installation.

♦ DATEUP safety lock.

♦ Mounting profiles with laser U-mark.

♦ Comply with CE ROHS certifications

Product Detail

Product Tags

Standard Specification


♦ IEC60297-2

♦ DIN41494: PART1

♦ DIN41494: PART7

♦ GB/T3047.2-92: ETSI

2.MS2 lock
3.mounting profile and Cable management slot

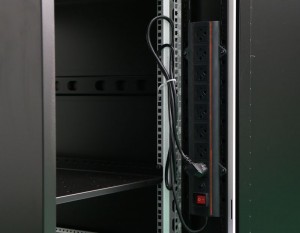

6.PDU unit
5.ground label


Materials SPCC cold rolled steel
Frame Disassembly
Width (mm) 600/800
Depth (mm) 600.800.900.1000.1100.1200
Capacity (U) 18U.22U.27U.32U.37U.42U.47U
Color Black RAL9004SN(01) / Gray RAL7035SN (00)
Turning degree > 180°
Side panels Removable side panels
Thickness (mm) Mounting profile 2.0, Mounting angle 1.5, Others 1.2
Surface finish Degreasing, Silanization, Electrostatic spray

Product  Specification

Model No. Description
MS2.■■■■.900■ Toughened glass front door, blue ornament strip, plate steel rear door
MS2.■■■■.930■ Toughened glass front door, blue ornament strip, double-section plate steel rear door
MS2.■■■■.980■ Toughened glass front door, blue ornament strip, plate vented rear door
MS2.■■■■.960■ Toughened glass front door, blue ornament strip, double-section plate vented rear door

Remarks:■■■■ First■ denotes width, second■ denotes depth, third & fourth■ denotes capacity; 9000 denotes Gray (RAL7035), 9001 denotes Black (RAL9004).


Main Parts:

① Frame
② Bottom panel
③ Top cover
④ Mounting profile
⑤ Spacer block

⑥ Mounting profile
⑦ Steel rear door
⑧ Double-section steel rear door
⑨ Vented rear door
⑩ Double-section vented rear door

⑪ Cable management slot
⑫ MS1 front door
⑬ MS2 front door
⑭ MS3 front door
⑮ MS4 front door

⑯ MS5 front door
⑰ MSS front door
⑱ MSD front door
⑲ Side panel
⑳ 2“Heavy duty caster

Remarks: Width 600 Cabinets without spacer block and metal cable management slot.


Payment & Warranty


For FCL (Full Container Load), 30% deposit before production, 70% balance payment before shippment.
For LCL (Less than Container Load), 100% payment before production.


1 year limited warranty.



• For FCL (Full Container Load), FOB Ningbo, China.

• For LCL (Less than Container Load), EXW.


Why choose MS2 Series cabinets?

(1) High-end and superior appearance design for the network cabinet with exquisite technology, precision size, standard specifications, preferred choices for classic wiring engineering.

(2) 1.2 thickness high-quality cold-rolled steel plate is used to prevent rust.
Four doors can be removed, which is convenient for equipment installation and maintenance.

(3) Multiple cable channels are preset at the top and bottom for easy installation and maintenance.

(4) Internationally popular transparent glass front door with door strips.
