MZH Wall-Mounted Cabinets

Short Description:

♦ Static loading capacity: 70 (KG).

♦ Package Type: Assembly.

♦ Structure: Welded frame.

♦ Top and bottom cover with knock out holes.

♦ Removable side panels; Side door locks optional.

♦ Double section welded frame structure;

♦ Easy operation and maintaining at the back.

♦ Turning angle of front door: above 180 degrees;

♦ Turning angle of rear door: above 90 degrees.

♦ Comply with UL ROHS certifications.


Product Detail

Product Tags

Standard Specification

♦ ANSI/EIA RS-310-D

♦ IEC60297-2

♦ DIN41494: PART1

♦ DIN41494: PART7

1.MZH wall-mounted cabinets1
4.MZH wall-mounted cabinets1

Details

Materials

SPCC cold rolled steel

Model Series

MZH Series Wall Mounted Cabinet

Width (mm)

600 (6)

Depth (mm)

450(4).500(A).550(5).600(6)

Capacity (U)

6U.9U.12U.15U.18U.22U.27U

Color

Black RAL9004SN (01) / Gray RAL7035SN (00)

Thickness of Steel (mm)

Mounting profile 1.5mm others 1.0mm

Surface finish

Degreasing, Silanization, Electrostatic spray

Lock

Small round lock

Product  Specification

Model No. Description
MZH.6■■■.90■■ Toughened glass front door, door border without holes, small round lock
MZH.6■■■.91■■ Toughened glass front door, with round hole vented arc door border, small round lock
MZH.6■■■.92■■ Plate steel door, small round lock
MZH.6■■■.93■■ Hexagonal reticular high density vented plate door, small round lock
MZH.6■■■.94■■ Toughened glass front door, with slanted slot door border, small round lock

Remarks: First■ denotes depth second & third■■ denotes capacity. When fourth & fifth■■ is“00” denotes Gray color (RAL7035) “01”denotes Black color (RL9004).

MZH-V190313_00

MZH Cabinets Assembly Drawing

Main Parts:

① Frame
② Mounting profile
③ Side panel
④ Cable entry cover
⑤ Back panel

⑥ Toughened glass front door
⑦ Toughened glass front door with slanted slot door border
⑧ Toughened glass front door with round hole vented arc door border
⑨ Hexagonal reticular high density vented plate door
⑩ Plate steel door

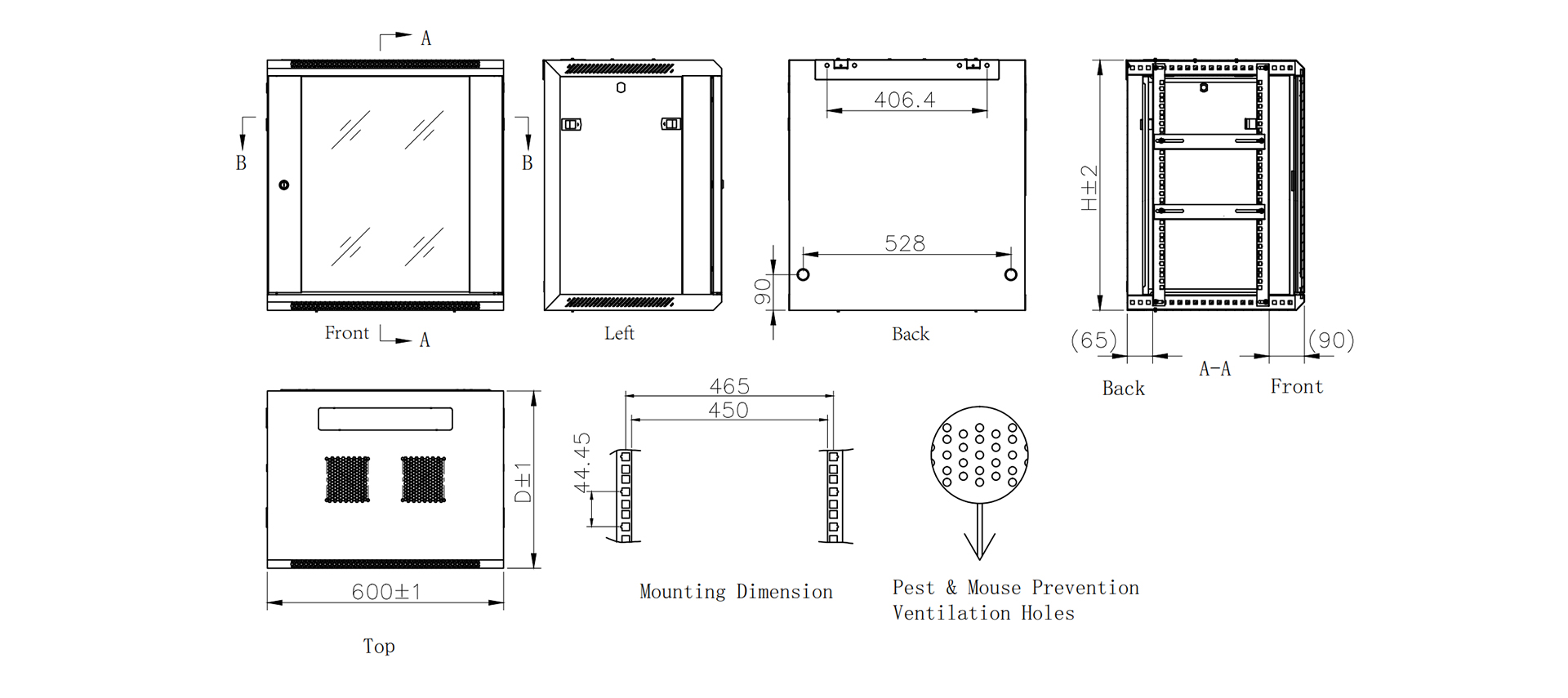

MZH-190313

Payment & Warranty

Payment

For FCL (Full Container Load), 30% deposit before production, 70% balance payment before shippment.
For LCL (Less than Container Load), 100% payment before production.

Warranty

1 year limited warranty.

Shipping

shipping1

• For FCL (Full Container Load), FOB Ningbo, China.

• For LCL (Less than Container Load), EXW.

FAQ

What are the functions of the network cabinet?
In addition to reducing the device footprint, the network cabinet also has the following functions:

(1) Greatly improve the overall aesthetic degree of the machine room.
For example, the 19-inch design can accommodate a large number of network devices, simplifying the layout of the equipment room and improving the overall appearance of the equipment room.

(2) Effectively ensure the safety and stability of the equipment.
The cooling fan of the network cabinet can send the heat emitted by the equipment out of the cabinet to ensure the safe and stable operation of the equipment. In addition, network cabinets also have the effect of enhancing electromagnetic shielding, reducing working noise, and even filtering air.
